Everbright Industrial Wire Manufactory

Galvanized iron wire, as our primary products, falls into two major kinds according to the finishes. One is electro galvanized wire while the other is hot dipped zinc coated galvanized wire.


Home >> products

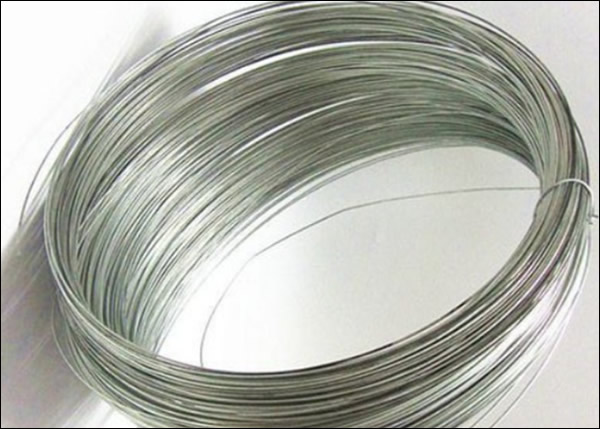

Electro Galvanized Iron Wire

We are leading wire mesh manufacturer in China. We supply different size electro galvanized iron wire. We supply galv. drawn iron wire in all size. Wire packed in spool, 6 spool in one box, unit spool weight 4.25 kg.

Size:
01. 0.285mm
02. 0.33mm
03. 0.42mm
04. 0.47mm
05. 0.50mm
06. 0.59mm.

Electro galvanised book binding wire: EG Book-binding Wires, 2 Kgs net on Plastic Spools.

Our customers in Sri Lanka has an inquiry for electro-galvanised BOOK-BINDING WIRES in Coils of 2Kg, each packed on plastic spools.
Section Type Wire Size No. of Coils
Round Wire 0.56mm 250
Round 0.60mm 400
Round 0.69mm 250
Round 0.75mm 375
Round 0.90mm 200
Flat Wire 1.00 x 0.81mm 125

Dimensions of Plastic Spool (with wire)

Inside Core Dia : 18mm
Outside Core dia : 140mm
Width of Spool : 57mm.

Customized specifications for Saudi Arabian customers

Chinese origin: Electro GI Wire
Size: BWG22
Weight: 8kgs per coil
Packing: Each coil of 8kgs wrapped with polythene then into hessian cloth (jute)
then 5 such coils to be/bundle, each bundle to be tide from all 4 sides.
Quantity: 2x20'ft (50 Tons) shipment under 1 B/L.

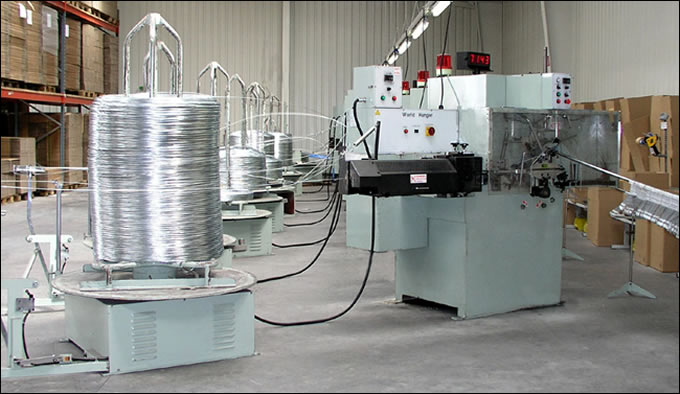

Wire electro galvanized for making the wire hanger for used in dry cleaning, wire diameter: 2;20mm coil.

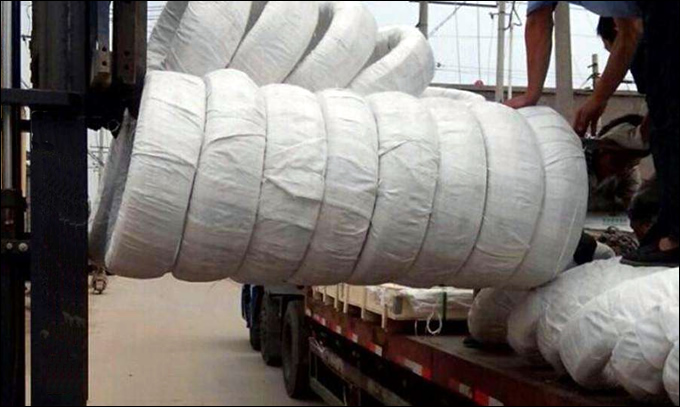

Electro galvanized wire 0.52 and 0.54 mm in 25kg coil. Packing = coil 25 kg plastic inside & p.p outside.

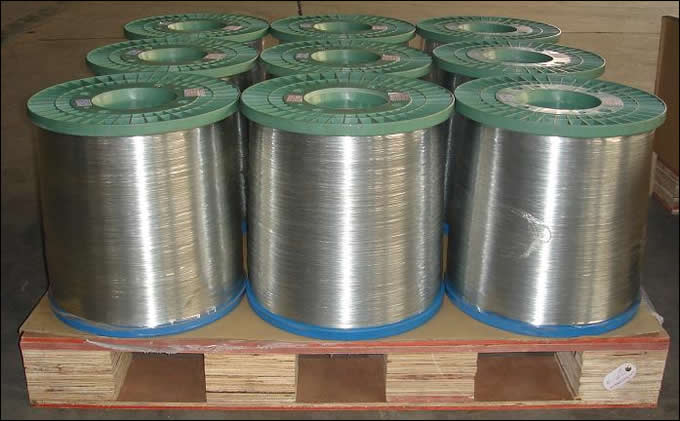

0.64 mm spool wire
Low carbon Electro galvanized drawn wires between 0.55mm - 1.65mm
Material: 1018
Diameter = 0,64mm
Tensile strength = (90 / 110 kg/ mm2) ) , 900/1100 n/mm2
Surface: galvanized & spooth
Plastic spool: mp100 or 500 kg / wooden spool.

C1006 1.7mm Electro Galvanise Wire for Fastener Making
Custom sized products for Canada manufacturer of fasteners.

Electro Galvanized wire
Steel grade C1006
1.7 mm diameter
Zinc coating 15 gms/m2
On R1000 spools (1 metric ton/spool)
Tensile Strength = 700-800N/mm2

0.23mm (spool packing)
0.27-0.28mm (spool packing and coil packing)
0.33-0.34mm (coil packing)
0.38-0.39mm (coil packing)
0.44-0.45mm (coil packing)

Material : Electro Galvanized iron wire , Q195
Quality : Soft and glossy
Size : 2.10mm
Tensile strength : 350 - 500 N/mm2
Zinc coating : Min 20 g/m2
Coil ID : 400-500mm
Packing : 500kgs coil roll. Export quality good packing

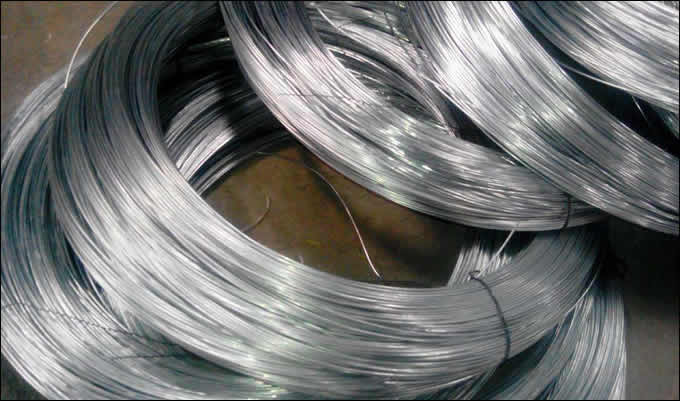

General Introduction: Electro galvanized wire is our featured product. It is made by means of wire drawing followed by heat treatment and electro galvanizing.
Materials: Carbon steel wire, mild steel wire.
Wire diameter: BWG8# to BWG16#.
We also offer thinner wire down to BWG5# or up to BWG28# upon customers specific order.
Packing: In coils or spools. Single coil package can be as small as 10 kg and up to maximum 1000 kg per coil.
Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Forms of Supply: Can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Applications: This kind of industrial wire is mainly used in construction, making of wire nails, fasteners, hangers and wire ropes, express way fencing, binding of flowers and wire mesh weaving.



Electro Galvanized Wire Technical Info:


Serial Number

Wire Gauge

Wire Diameter (mm)

Standard Bundle Weight (Kg)

1

Wire Gauge 8#

4.0

50

2

Wire Gauge 10#

3.5

50

3

Wire Gauge 12#

2.8

50

4

Wire Gauge 14#

2.2

50

5

Wire Gauge 16#

1.6

50.25

6

Wire Gauge 18#

1.2

25

7

Wire Gauge 20#

0.9

25

8

Wire Gauge 22#

0.7

10-25
