Everbright Industrial Wire Manufactory

Galvanized iron wire, as our primary products, falls into two major kinds according to the finishes. One is electro galvanized wire while the other is hot dipped zinc coated galvanized wire.

Home >> products

Hot Dipped Galvanized Steel Wire for Portugal and European Market

In 2014, Everbright supplies quality hot dipped galvanized wire made from low carbon steel wire for Portugal as well as European market. Detail technical information and characteristics as follows.

Raw Material We Use: We use low carbon steel wire drawn from 6.5mm wire rod model Q195. And the element composition is: C≤0.07; S≤0.023; Si≤0.09; Mn≤0.32; P≤0.025. This type of low carbon steel wire rod has less Impurities, fit for drawing. The wire rod goes through drawing, annealing, acid washing, zinc coating and coiling before packing. Quality control processing goes all the way through to ensure final quality exporting wire coils.

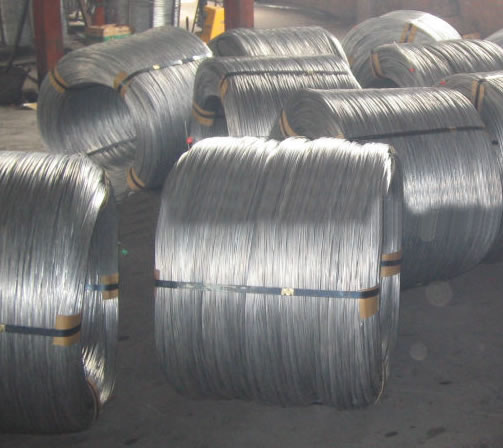

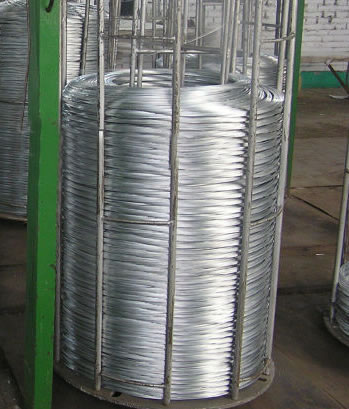

Hot Dipped Galvanized Coil Wire

Low Carbon Galvanized Wire

1)     Hot dipped galvanized wire with the following characteristics:

·       Low carbon wire as basic material
·       Diameter tolerance: +0/-0,03mm
·       Tensile Strength: 450-550N/mm2
·       Zinc coating according to EN 10244-2 Class C (35-45Gr/m2)
·      Diameters of Hot dipped wire: 0,5mm, 0,6mm, 0,7mm and 0,8mm
·       Packing: Coils of 50Kgs and then in bundles of 4 coils

2)     Hot dipped galvanized wire with the following characteristics:

·       Low carbon wire with diam. tolerance acc. to DIN 177
·       Tensile Strength 450-550N/mm2
·       Zinc coating acc. to EN 10244-2 Class C (35-45Gr/m2)
·       Wire Diameter: 1,20mm
·       Packing: Coils of 25Kgs

We also supply hot dipped galvanized wire meeting different technical requirements and other standards, commonly as below:

Quality: ASTM Standard: A641/A641M-98

Material: SAE1006/1008,Q195/235 SAE1050/1065

Standard wire gauge: BWG6 to BWG25.

Zinc coating: 8-25g/sqm for Electro Galvanized Wire; 60g - 220g/sqm for Hot Dipped Galvanized Wire

Heavy coating: >200grams/sq.m or according to our customers' requirement >250grams/sq.m

Tensile strength: 300/550Mpa, 350/450Mpa, 450-550Mpa, 600-800Mpa, 700-900Mpa 1100-1300Mpa, 1300-1700Mpa etc.

Packing: 1kg-1000kgs/coil
