Everbright Industrial Wire Manufactory

Galvanized iron wire, as our primary products, falls into two major kinds according to the finishes. One is electro galvanized wire while the other is hot dipped zinc coated galvanized wire.


Home >> products

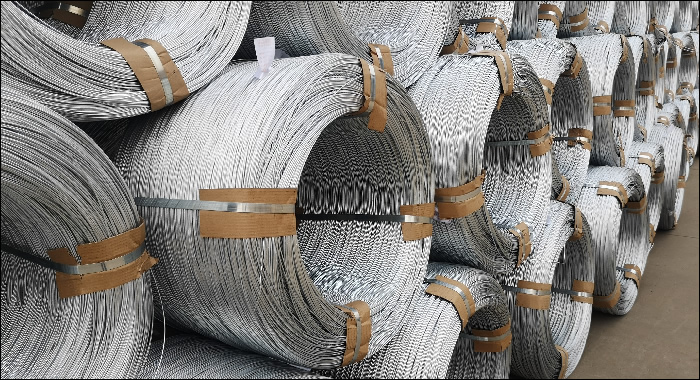

Galvanized Wire for Armouring Cable
Galvanized wire for armouring cable Hot Dipped Armouring Cable Wire


We offer quality hot dipped galvanized wire for armoring cable manufacture in accordance to GB/T3082/ASTMA411 and other standards.

Zinc Coating for galvanized armoring cable wire: GB/T3082/ASTMA411 and other standards.

Raw material:
    A、BP05 WIRE ROD.
    B、ZINC WITH 99.995% purity.

TENSILE STRENGTH RANGE

size(mm) tensile strength (mpa)
0.80—3.50 340--550

PACKING

size(mm)
coil size
 spool packing
big coil packing
ID (mm)
OD (mm)
0.80—1.60 14、16 cun 1—100㎏ axis
250-400
400-770
1.61—3.50


450
508
800
840

ZINC COATING

Size mm
Min. zinc coating  (g/㎡)
A1 B2
〉0.80-1.00 150 120
〉1.00-1.20 180 150
〉1.20-1.40 200 150
〉1.40-1.60 220 150
〉1.60-1.80 220 180
〉1.80-2.20 240 190
〉2.20-2.50 260 210
〉2.50-3.00 275 240
